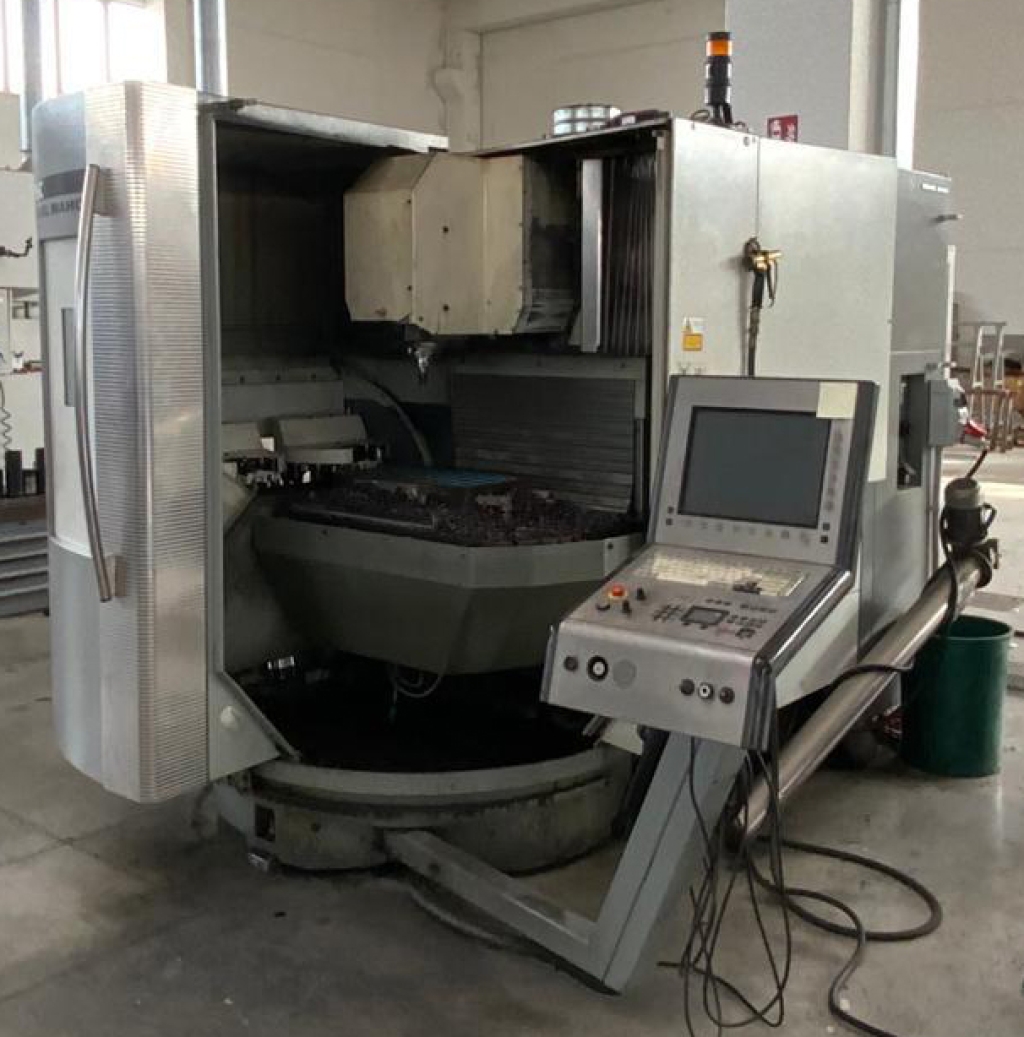

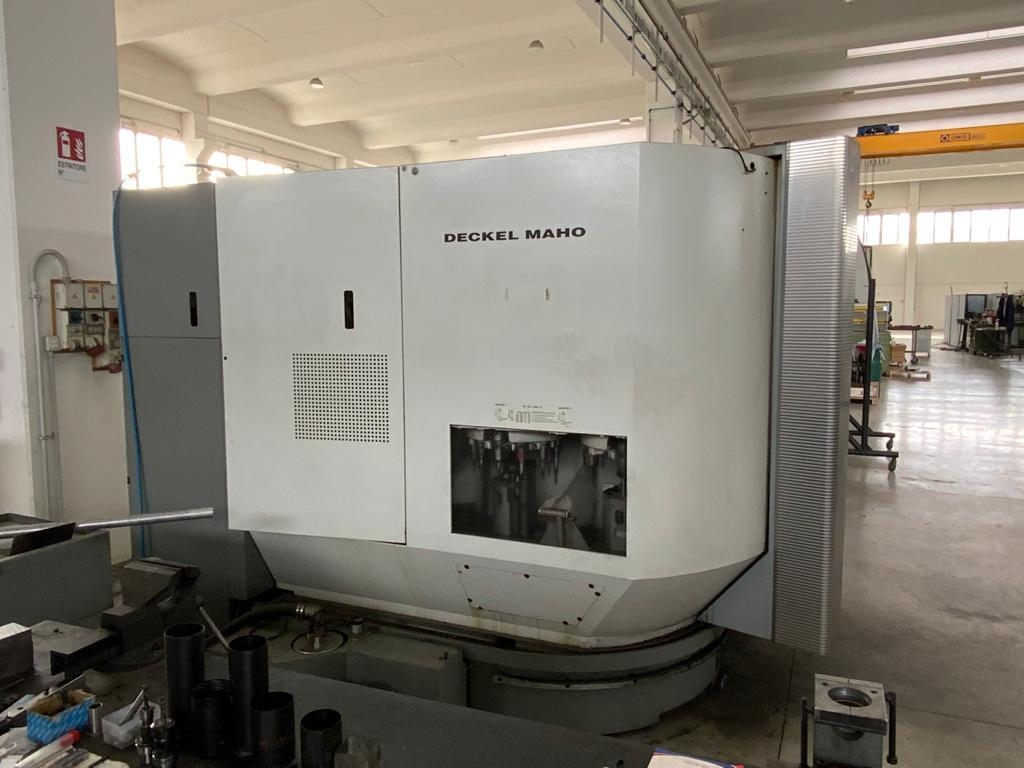

Centro Di Lavoro Verticale DMU 60
Technical specifications

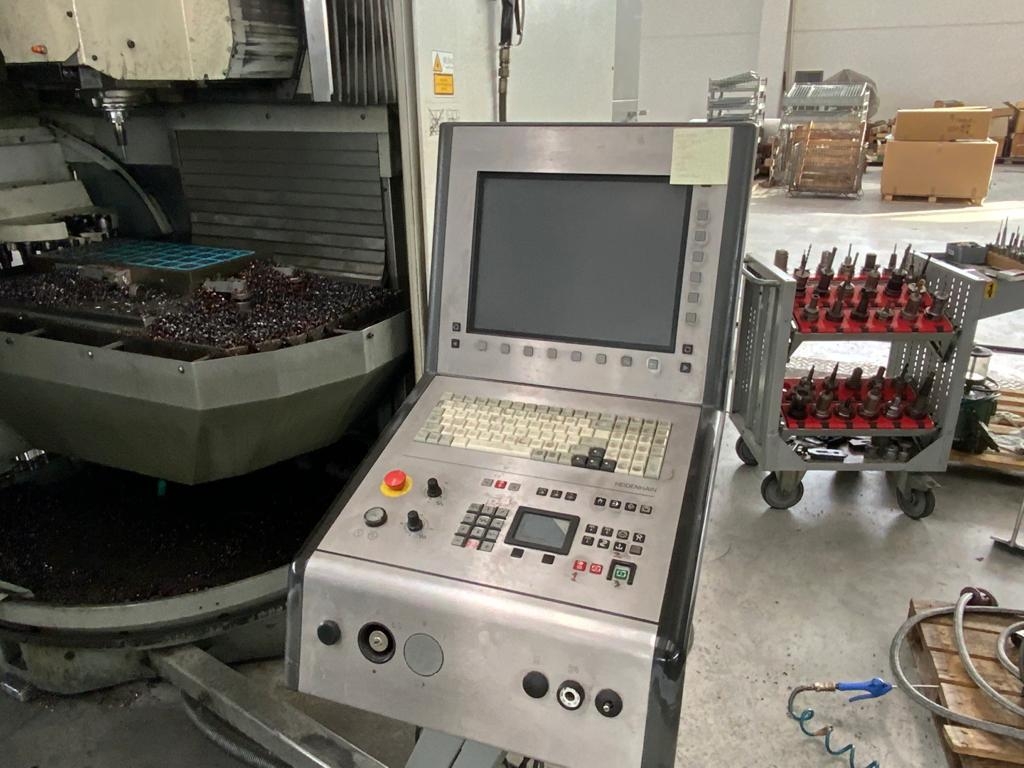

| CNC Model | Heidenhain |
| CNC version | iTNC 530 |

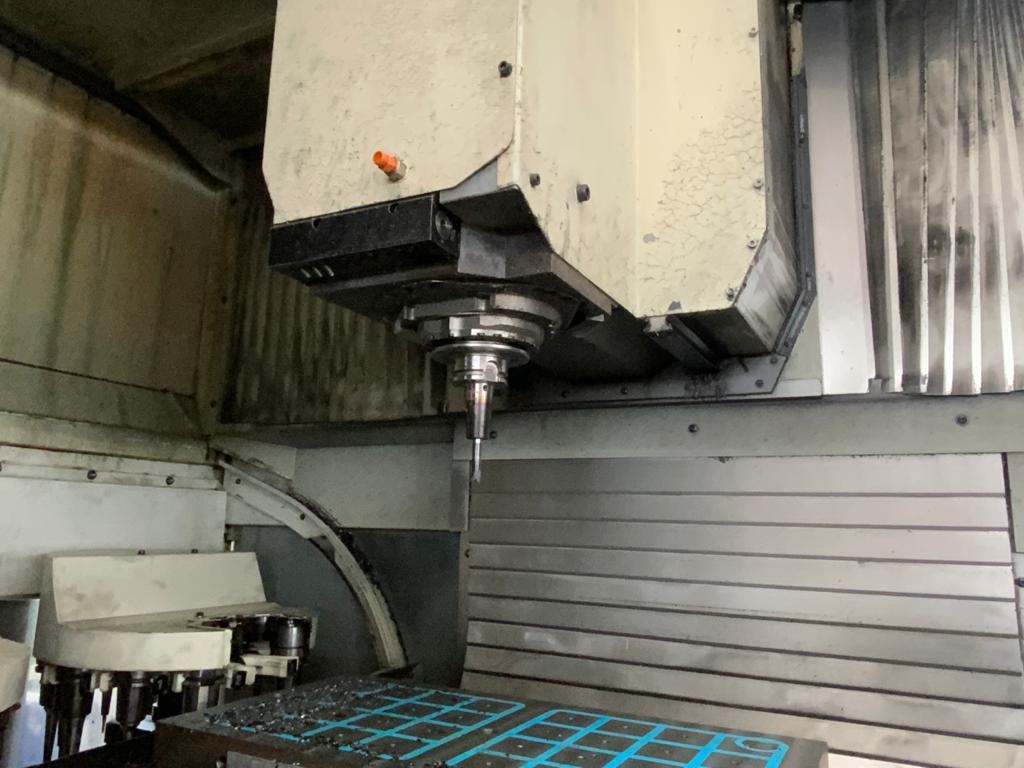

| Spindle Taper toolholders | HSK 63 |
| Power spindle | 12 Kw |
| RPM | 12000 |

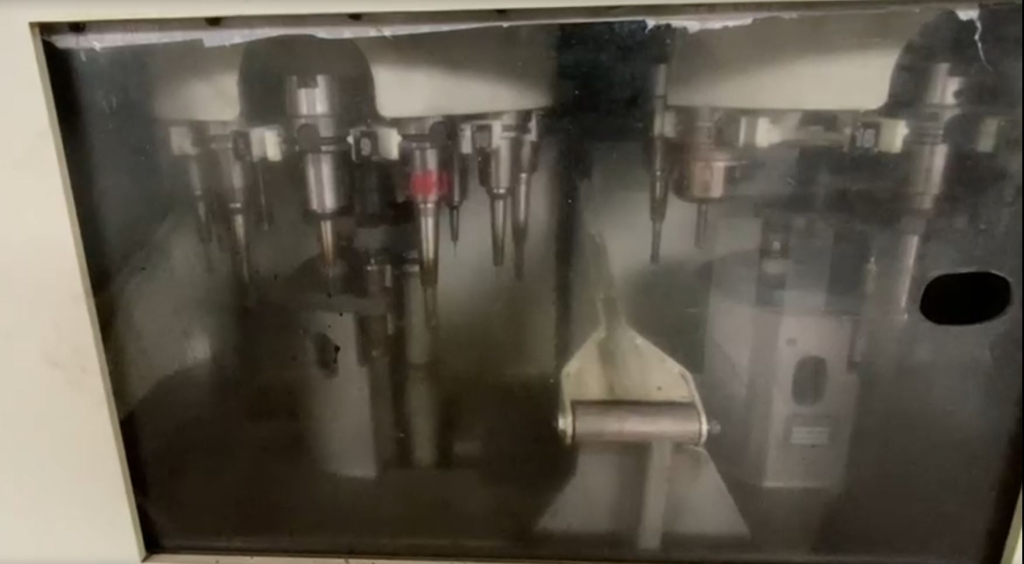

| Number of tools | 24 ( 12 x 2 ) |
| X-axis travel | 630 mm |
| Y-axis travel | 560 mm |
| Z-axis travel | 560 mm |
| Rapid linear axis feeds X Y Z | 20 m/min |
| Table dimension | 1000 x 600 mm |
| Maximum load allowed | 500 Kg |
| Guide | Linear guide |

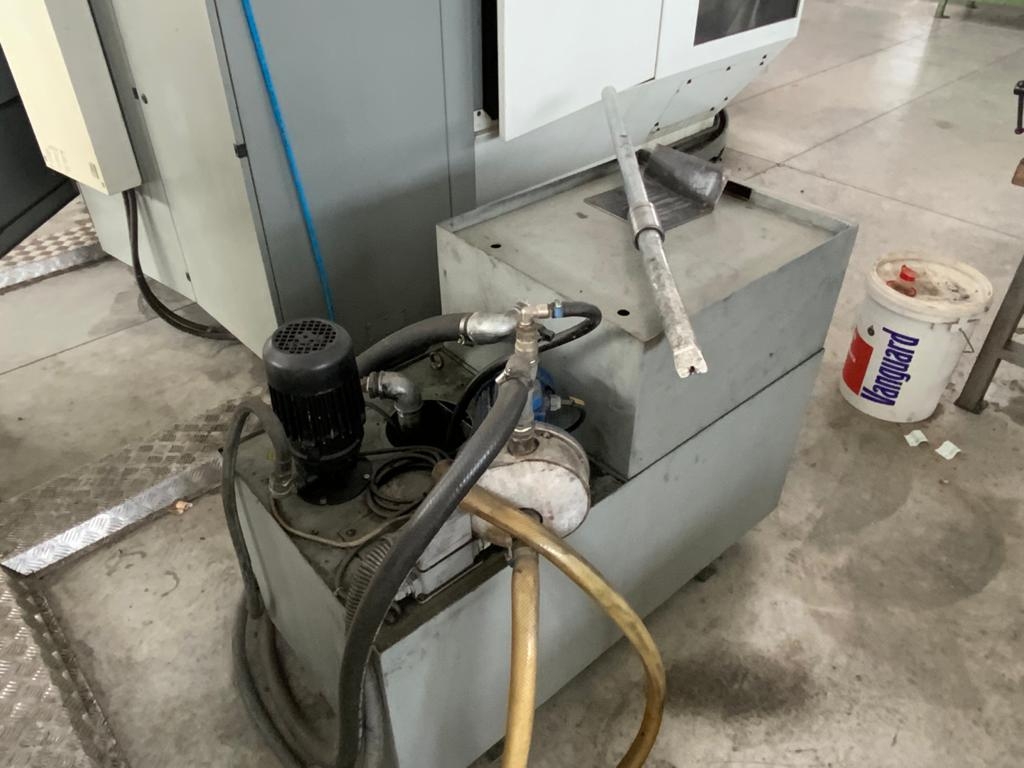

| High coolant pressure | yes |
| Cheap conveyor | Hinged Belt |
Basic information
| Code | FF82C0 |
| Level of machine tool |
standard
|
| Brand | Dmg DMU 60 |
| Model | DMU 60 |
| Construction year | 2002 |
Dimensions and weight
| Length | 3500 mm |
| Width | 2700 mm |
| Height | 2210 mm |
| Weight | 6500 Kg |
