Tornio Da Barra Okuma LB 3000 MY
Technical specifications
| CNC Model | Okuma OSP |
| CNC version | OSP P200L |
| Main spindle nose | ASA 8 |
| Power main spindle | 22 Kw |
| Main spindle bar diameter | 80 mm |
| Max turning diameter | 410 mm |
| Main spindle RPM | 4200 |
| Number of turrets | 1 |
| Number tool posts on the 1th turret | 12 |
| Number of driven tool posts on the 1th turret | 12 |
| X-axis travel 1th turret | 260 mm |
| Y-axis travel 1th turret | +70 - 50 mm |
| Z-axis travel 1th turret | 565 mm |
| Rapid linear axis feeds X Y Z | 30 m/min |

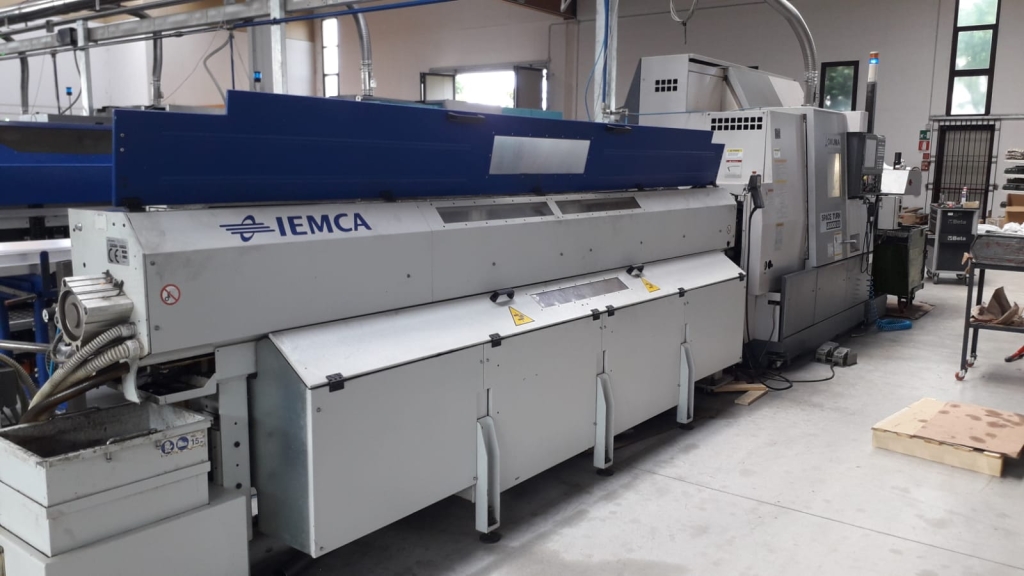

| Barfeeder model and brand | Iemca master 880 multi piano basso |
| Cheap conveyor | Hinged Belt |
Basic information
| Code | 667D6D |
| Level of machine tool |
standard
|
| Brand | Okuma |
| Model | LB 3000 MY |
| Construction year | 2008 |
Complete data sheet

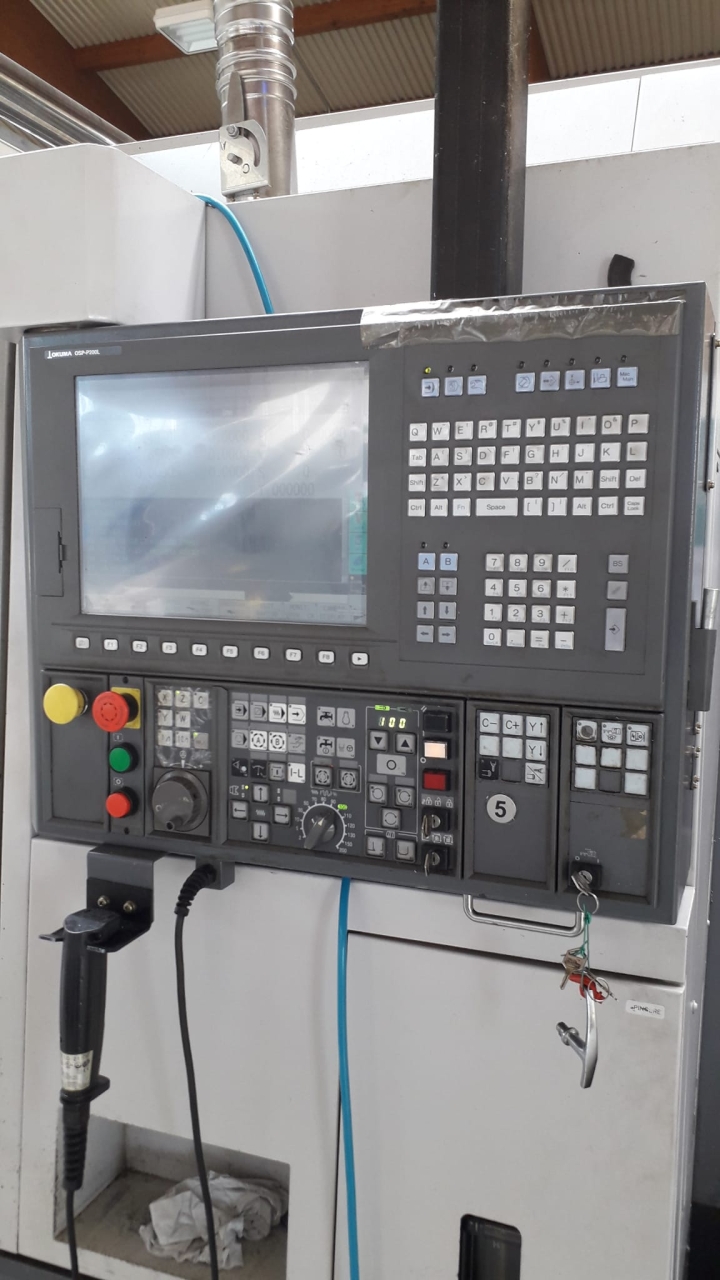

Schermo Touch Screen
NON E' PRESENTE LA CONTROPUNTAMachine equipment
Set di portutensili fissi e motorizzati

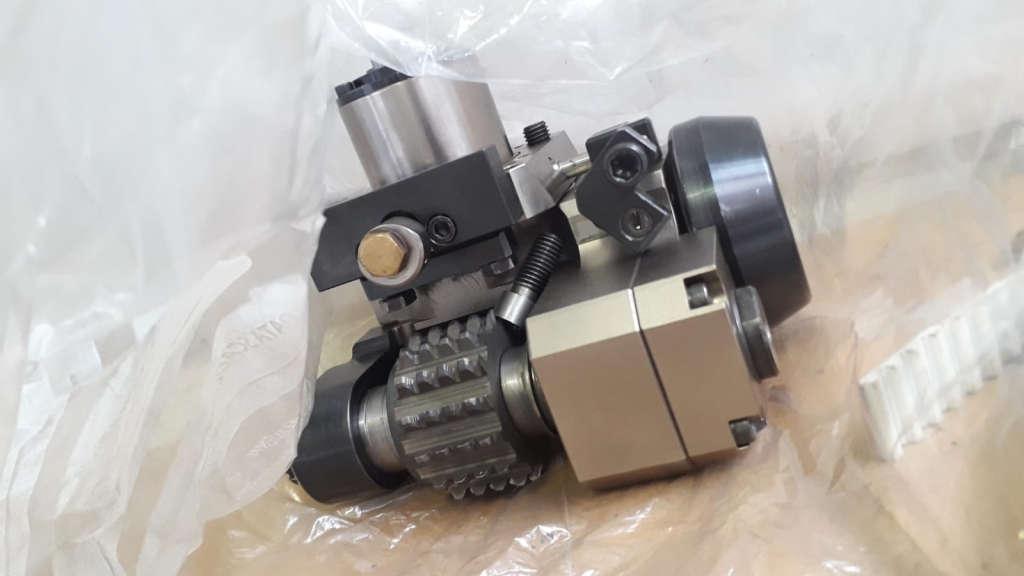

software per la dentatura e motorizzato SUMATIC porta creatoreDimensions and weight
| Length | 2200 mm |
| Width | 1734 mm |
| Height | 1839 mm |
| Weight | 4000 Kg |
