Tornio Bimandrino DOOSAN H310T
Technical specifications

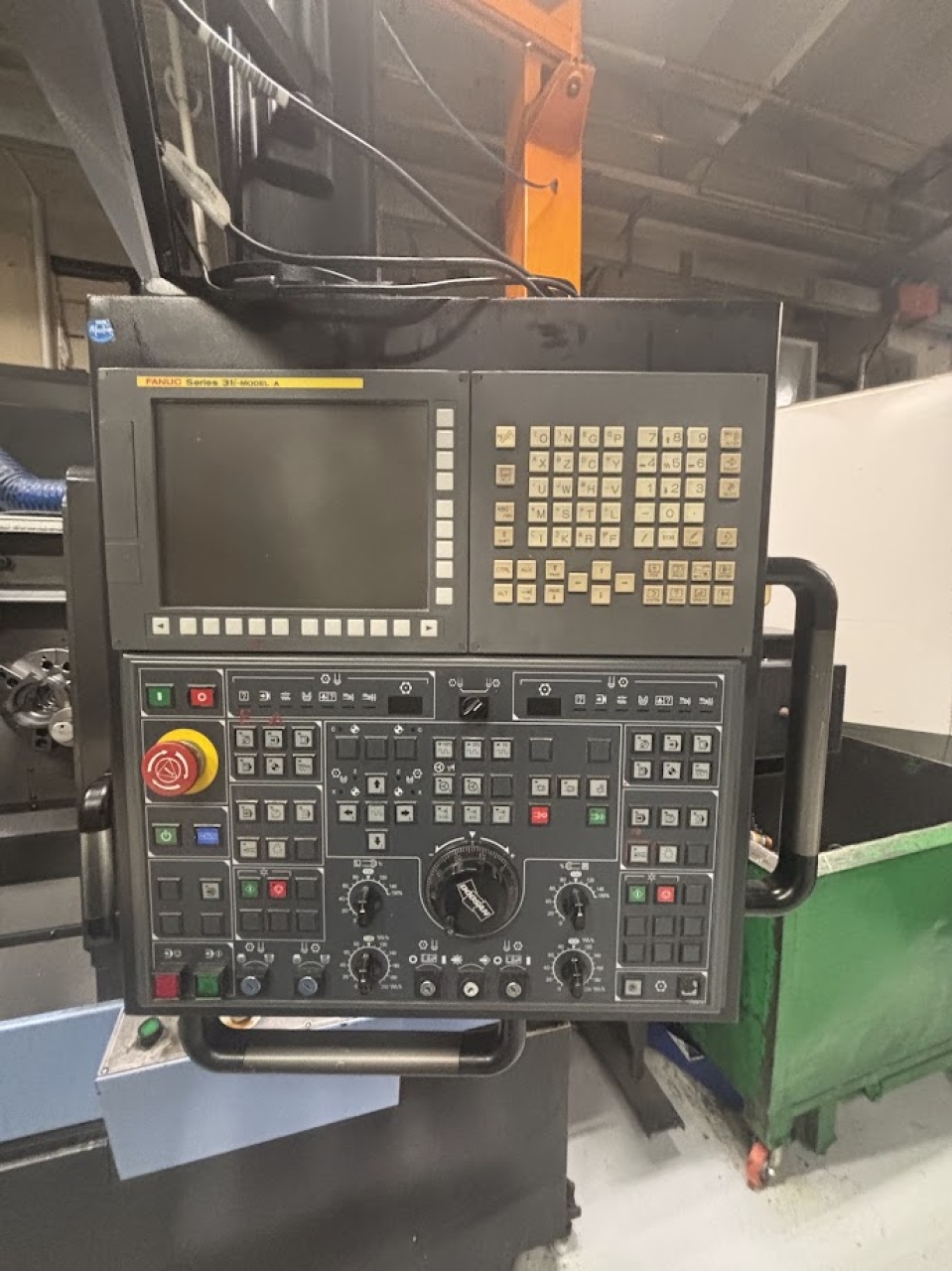

| CNC Model | Fanuc |
| CNC version | 18i - TB |
| Nose spindle | ASA 8 |
| Power spindle | 18,5 Kw |
| Max turning diameter | 390 mm |
| Spindle chuck diameter | 250 mm |
| Distance between the spindles | 500 mm |
| Max turning lenght | 230 mm |
| Main spindle RPM | 3500 |
| RPM second spimdle | 3500 |
| Number tool posts on the 1th turret | 10 |
| Number of fixed toolholders in 1th turret | 10 |
| X-axis travel 1th turret | 210 mm |
| Z-axis travel 1th turret | 230 mm |
| Number tool posts on the 2th turret | 10 |
| Number of fixed tool posts on the 2th turret | 10 |
| X-axis travel 2th turret | 210 mm |
| Z-axis travel 2th turret | 230 mm |
| Rapid linear axis feeds X Y Z | 24 m/min |
| Cheap conveyor | Hinged Belt |
Basic information
| Code | 5D14E6 |
| Level of machine tool |
standard
|
| Brand | Doosan |
| Model | H310T |
| Construction year | 2009 |
Dimensions and weight
| Length | 2840 mm |
| Width | 2125 mm |
| Height | 2383 mm |
| Weight | 7800 Kg |
